Public Evaluation Platform User Guide

We have built an AWS-based platform for large-scale parallel evaluation of OSWorld tasks. The system follows a Host-Client architecture:

Host Instance: The central controller that stores code, configurations, and manages task execution.
Client Instances: Worker nodes automatically launched to perform tasks in parallel.

All instances use a preconfigured AMI to ensure a consistent environment.

1. Platform Deployment & Connection

1.1 Launch the Host Instance

Create an EC2 instance in the AWS Console with the following settings:

Configuration Item	Value
AMI ID	`ami-0e49e0a70044dde43`
Instance Type	- `t3.medium` (Recommended for ≤5 parallel tasks) - `t3.large` (Recommended for ≤15 parallel tasks) - These numbers are based on using VSCode over SSH. You can save resources by running via CLI—`t3.large` supports up to 20 tasks that way. - For higher parallelism, use a more powerful instance.
VPC	`vpc-0f207282fe145bcda`
Subnet	`subnet-0a4b0c5b8f6066712`
Firewall (security groups)	`sg-05f8e79c10a7768e4`
Storage	50GB - Consider increasing if storing multiple results to avoid crashes.

Once launched, you will receive an instance ID like i-xxxxxx.

1.2 Connect to the Host Instance

Step 1: Prepare Your SSH Key

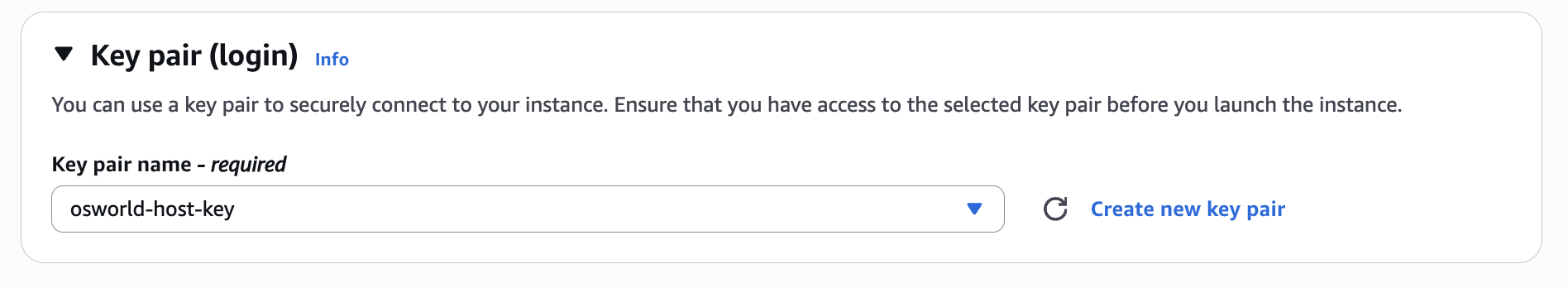

When launching the instance, choose "Create new key pair" and download the .pem file (e.g. osworld-host-key.pem). Save it locally.

Set appropriate permissions:
```
chmod 400 <your_key_file_path>
```
Find your instance's public IP and DNS:

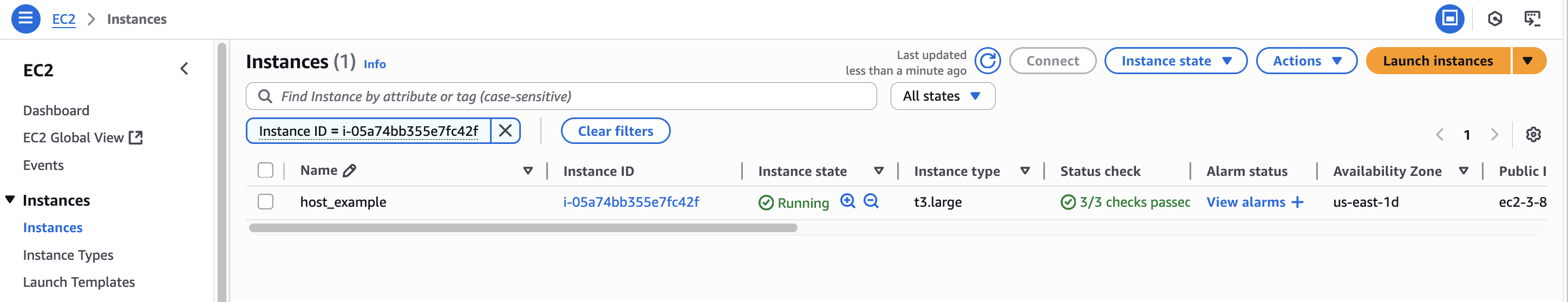

- Go to the EC2 Instances page on the AWS Console.
- Locate your Host instance by its ID.

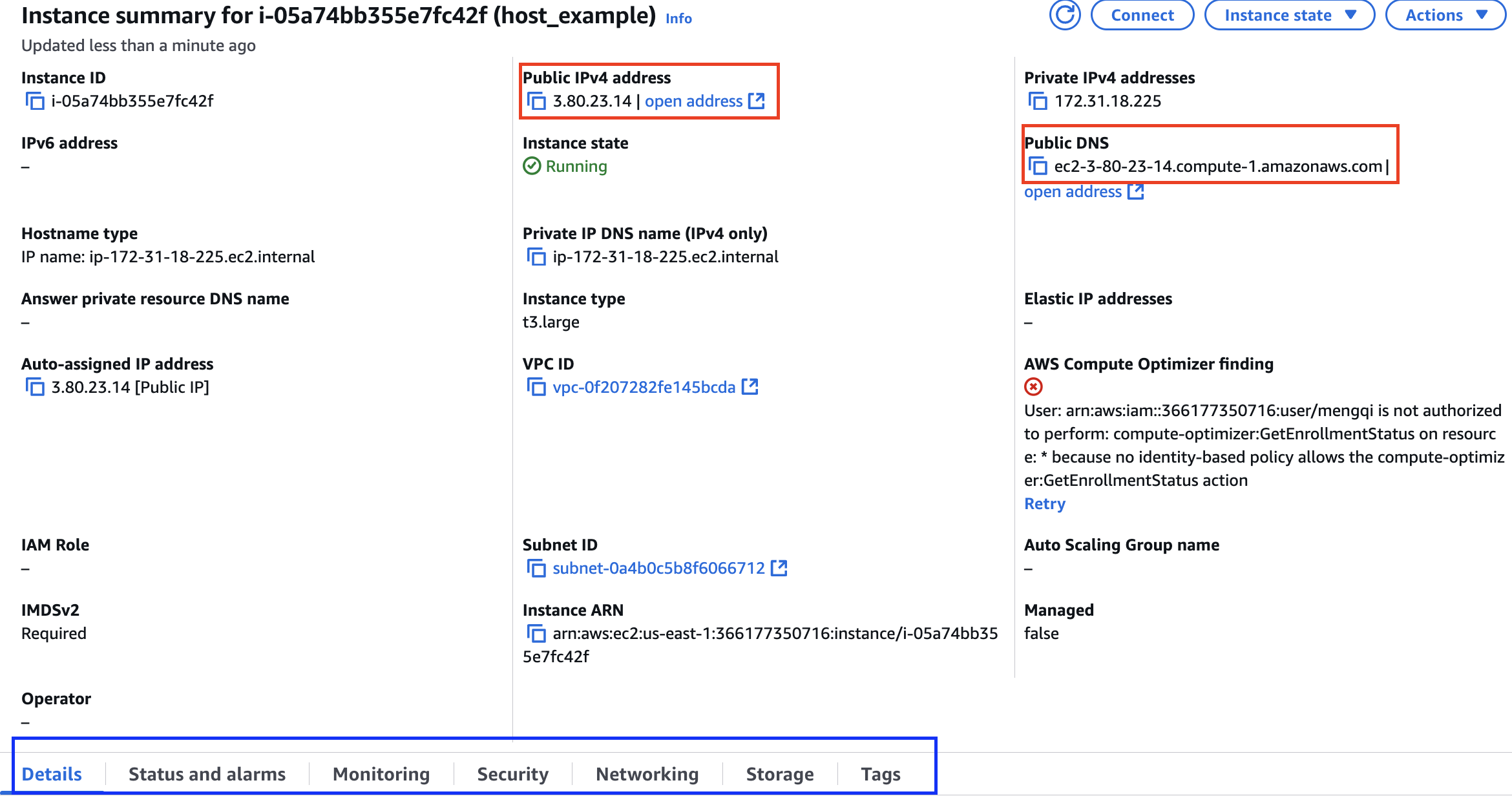

On the instance detail page:
- Public IP/DNS: used for browser/VNC access and SSH connection
- Instance metadata: e.g. storage, can be adjusted post-launch

Step 2: Connect via SSH or VSCode

SSH:

ssh -i <your_key_path> ubuntu@<your_public_dns>

VSCode Remote SSH configuration:

Host host_example
    HostName <your_public_dns>
    User ubuntu
    IdentityFile <your_key_path>

1.3 Get AWS Access Keys & Secret Access Key

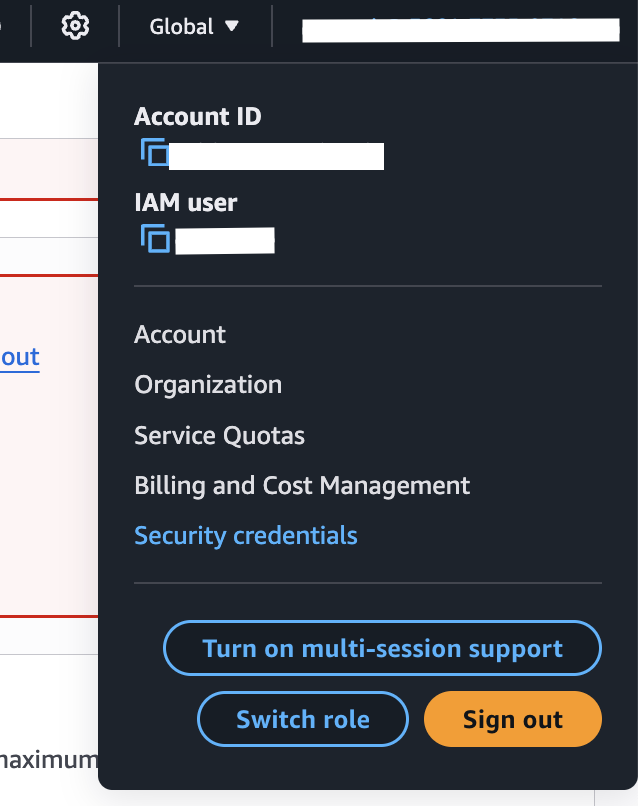

Click on Security Credentials from the drop-down menu under your account in the top-right corner.

In the Access keys section, click "Create access key" to generate your own key.

2. Environment Setup

2.1 Google Drive Integration

Follow the instructions in ACCOUNT_GUIDELINE, specifically the section "Generating credentials.json for Public Eval". This part is necessary if using public evaluation.

2.2 Proxy Setup

Configure your credentials in OSWorld/evaluation_examples/settings/proxy/dataimpulse.json:

[
    {
        "host": "gw.dataimpulse.com",
        "port": 823,
        "username": "your_username",
        "password": "your_password",
        "protocol": "http",
        "provider": "dataimpulse",
        "type": "residential",
        "country": "US",
        "note": "Dataimpulse Residential Proxy"
    }
]

2.3 Set Environment Variables

export OPENAI_API_KEY_CUA="your_api_key"
export AWS_ACCESS_KEY_ID="your_access_key"
export AWS_SECRET_ACCESS_KEY="your_security_access_key"
export AWS_REGION="your_aws_region" # eg. us-east-1
export AWS_SUBNET_ID="subnet-0a4b0c5b8f6066712"
export AWS_SECURITY_GROUP_ID="sg-08a53433e9b4abde6"

3. Running Evaluations

Use the run_multienv_xxx.py scripts to launch tasks in parallel.

Example (with the OpenAI CUA agent):

python run_multienv_openaicua.py \
--headless \
--observation_type screenshot \
--model computer-use-preview \
--result_dir ./results_all \
--test_all_meta_path evaluation_examples/test_all.json \
--region us-east-1 \
--max_steps 150 \
--num_envs 5

Key Parameters:

--num_envs: Number of parallel environments
--max_steps: Max steps per task
--result_dir: Output directory for results
--test_all_meta_path: Path to the test set metadata
--region: AWS region

4. Viewing Results

4.1 Web Monitoring Tool

cd monitor
pip install -r requirements.txt
python main.py

Then, open your Host's public IP on port 8080 in a browser. (eg. http://<client-public-ip>:8080)

For more, see: MONITOR_README

4.2 VNC Remote Desktop Access

You can also access Client instances via VNC athttp://<client-public-ip>:5090/vnc.html
